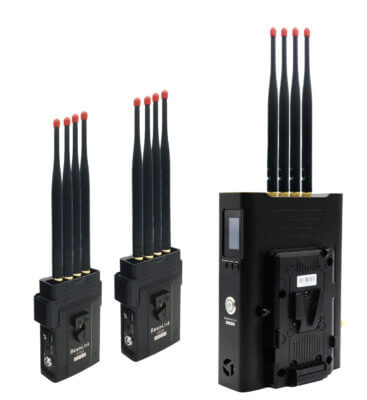

1.Wireless HD; long distance transmission; up to 700m range; 2. 2TX-to-1RX; Tally function; support 2 channels HDvideo transmission; in 1 RF channel provide a seamlessconnection between RX and video switcher; 3.Support both SDI and HDMI input; 4.Simple installation; convenient operation;flexible application;eliminate the hassle of
running wires for multi-position.
Description
| Item | Data |
| Antenna Mode | 4×4 MIMO and Beamforming, 5dBi External antenna |
| Frequency | 5.1~5.8GHz |
| Transmission power | 17dBm |
| Audio Format | PCM,MP2 |
| Receiving Sensitivity | -70dBm |
| Bandwidth | 40MHz |
| Power consumption | 10W |
| Transmission range | 700m(video code rate: 8Mbps per channel) |
| Temperature | -10~50 C(Working);-20~80 C(Storage) |
| Overvoltage Protection | 7V~17V |
| Product Size | 96(L)×46(W)×127(H) |
| Item | Data |
| Antenna Mode | 4×4 MIMO and Beamforming, 5dBi External antenna |
| Frequency | 5.1~5.8GHz |
| Receiving Sensitivity | -70dBm |
| Bandwidth | 40MHz |
| Audio Format | PCM,MP2 |
| SDI Protocol | SMPTE 424M 3G-SDI |
| Power consumption | 13W |
| Transmission range | 700m(video code rate: 8Mbps per channel) |
| Product Size | 176(L)×81(W)×235(H) |
| Operating voltage | 7-17V |
Additional information
| Wireless Products By Range | 2297 Feet / 700 Meters |
|---|
