200W LED Spot Beam Wash for Wedding 3in1 Moving Head Light. For the high power LED Spot Light need for the stage performance, we have designed this 200W LED Moving Head Spot Beam Wash Light. Its brightness is very near the traditional 280W Moving Head Spot Beam Wash Light, it’s powerful and wonderful. This is your best choice for the stage lighting performance.
Description
- Features
- The output of the 200W is equal to 280W lamp;
- Equipped LCD display, easy operate;
- Have the prism function and prism rotation function;
- DMX linear dimmer function;
- Built-in programs under the master and slave control mode;
- Pan and tilt revise the location automatically;
- 0~100% linear dimmer, strobe speed adjustable.

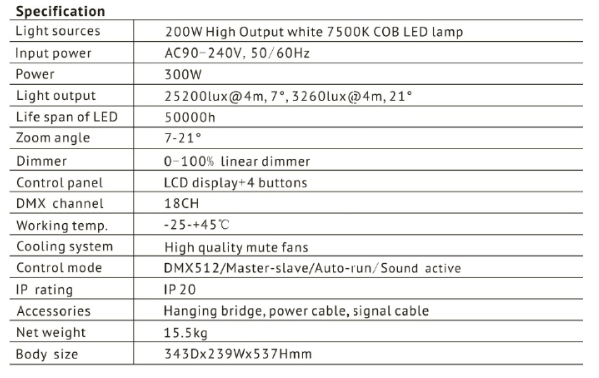

Technical Specifications
Light Sources
- LED: 1pc 200W White led lamp
- Lifespan: 50000h
- Color: white light sources, change color by color wheel
Optics
- Center beam angle: 7°
- Zoom range: 7-21°
- Dimmer: 0-100% linear dimmer
- Strobe: 1-25 times/second
Light Output
- Optimal projection distance: 3-15m
- Illuminance: 25200lux@4m, 7°, 3260lux@4m, 21°
Movement
- Pan(X axis): 540°, fine adjust function
- Tilt(Y axis): 270°, fine adjust function
Control
- Control mode: DMX-512; Master/slave mode; Demo mode; Sound active
- DMX channel: 18CH
- Display of control panel: LCD screen + 4 buttons, can adjust 180 degree to fit different installation position
Power Supply
- Related voltage: AC100V-240V, 50/60Hz
- Related power: 300W
Construction
- Body dimension: 343Dx239Wx537Hmm
- Net weight: 15.4kg
- Shell color: black
- Shell material: ABS
Working Environment
- Working temperature: -25-40℃
- Cooling: Fan
- Protection rating: IP20
Standard Configuration Spare Part List
- Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)
- User manual: English version user manual
- Clamp bridge: 1 set clamp bridge
Optional Configuration Spare Parts List
- Clamps: different style clamps optional
- Safety rope: different size safety ropes optional
Package
- Carton board box package size: 600*460*460mmm(1pcs/carton) [c:19-03-02]
- N.W/G.W/V.W: 16kg/18kg/26kg
- Flight case: 810*530*570mm(2pcs/case)
- N.W/G.W: 32kg/63kg
